Overview Design

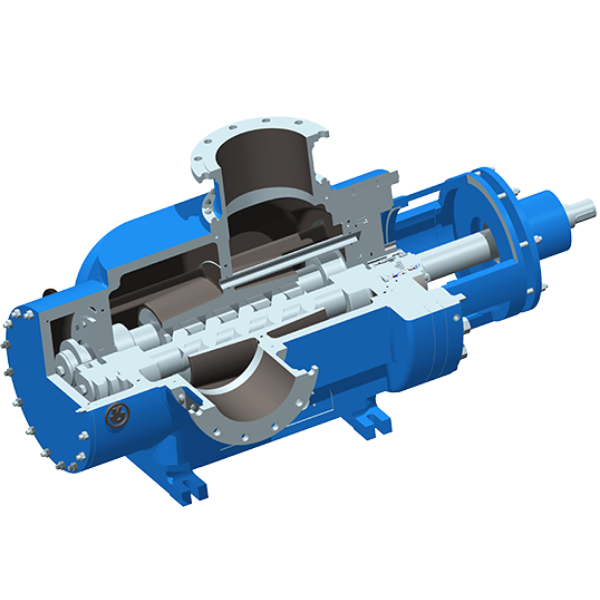

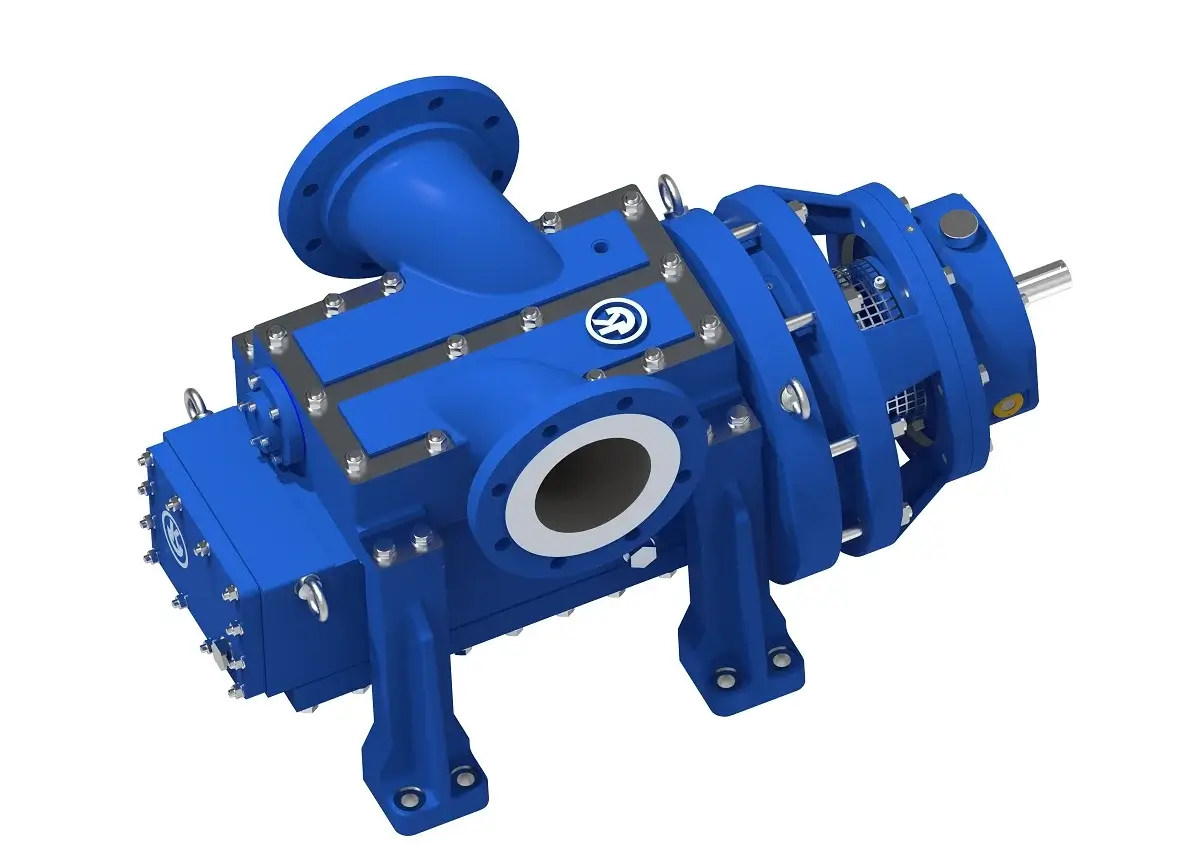

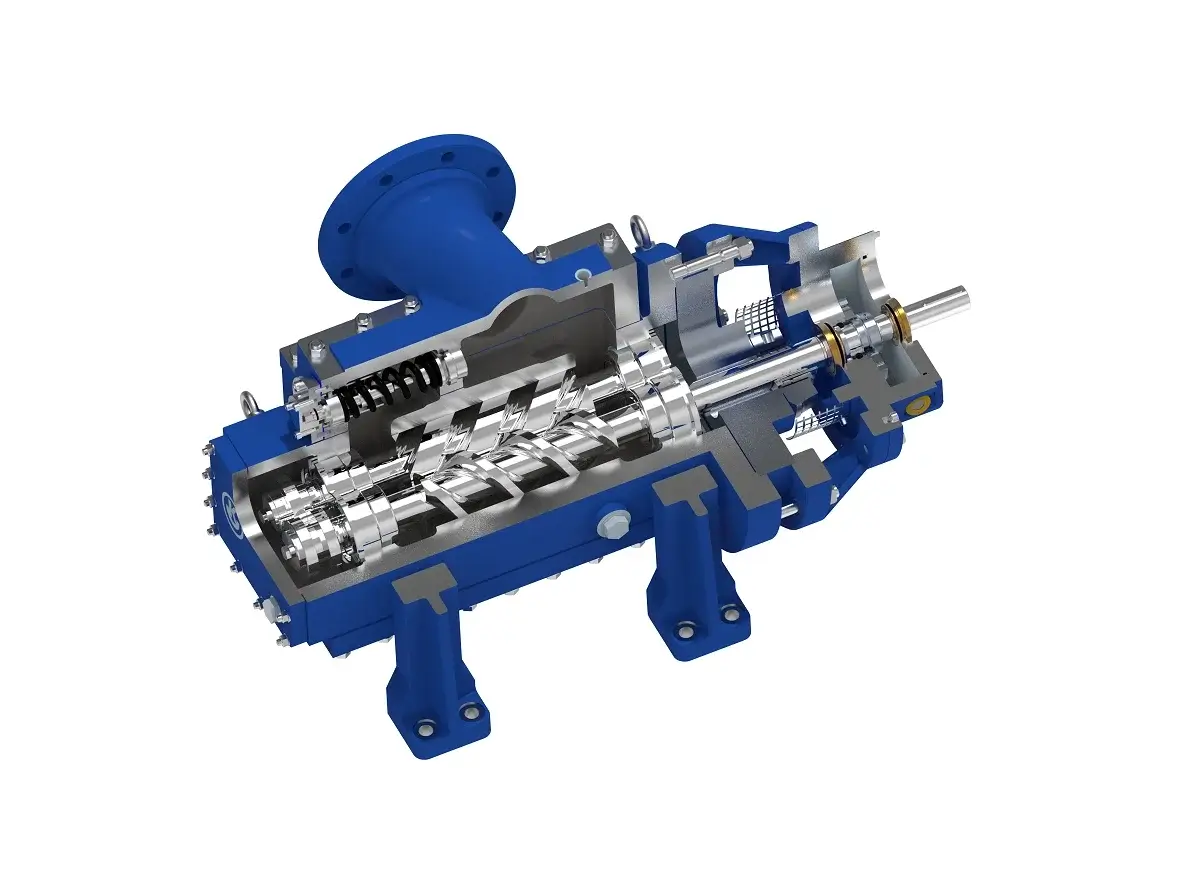

- Positive displacement rotary twin screw pump in single volute design
- Pump Casing Designed to axial split modular arrangement.
- Pump construction, performance and hydraulic built accordance to API 676 3rd edition
- Pump casing with centerline mounting design
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium – special material is also available upon request.
- Single Mechanical seal design – mechanical seal can be in fitted in accordance to EN 12756 or API 682 / ISO 21049 or to customer project and plant specification
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design.
- Pressure limiting / relief valve (PRV) using Klaus Union Series
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Bitumen asphalt or tar
- Light or heavy fuel oil
- polymers
- Aggressive, explosive and toxic liquids
- Liquids containing solids
- High-viscosity liquids
Details
| Flow Rate | Up to max. 1800m³/h. |
|---|---|
| Delivery Head | Up to max. 40 BAR |
| Temperature Range | -120°C to +350°C |
| Pressure Rating | max. PN 400 |
