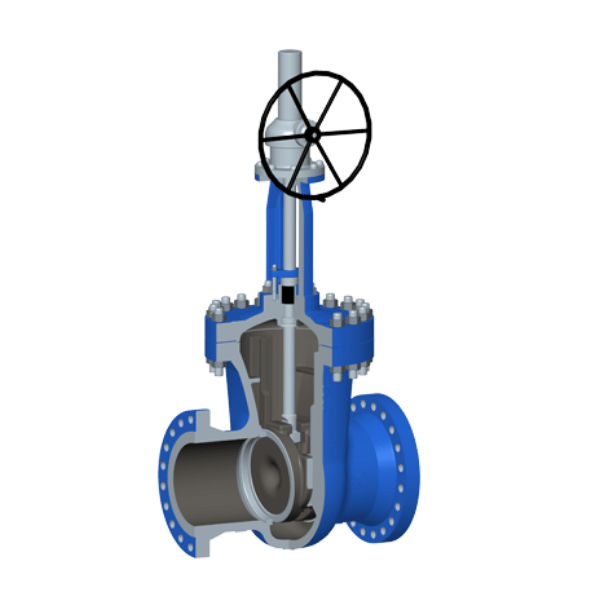

Valve Design
- Body of cast materials
- Bolted bonnet
- Outside screw and yoke
- Non rising handwheel (Rising spindle)
- Flexible wedge or double disc type
- Standard yoke size 12″ to 48″ arrangement for mounting of ISO 5210 electric actuator
- Blow out proof spindle by backseat
- Available in flanged or butt weld design
Design Standards
- Test pressure: API 598
- Face to face: ASME B16.10
- Flange facing:
- ASME B16.5
- ASME B16.27 (Valve size of 26″ or larger)
- Other flanges design available as option
- Butt weld:
- According to ASME 16.25
- Other design available as option
- Face to face:
- ASME B16.10
- Extended face to face
- Dimensions by using optional pup pieces
- Valve material: Please refer to list of standard material
Details
| Norminal Size Range | 2 inches to 48 inches |
|---|---|
| Norminal Pressure Range | Class 150 to class 600 |
| Temperature Range | -200°C to +550°C |
