Overview Design

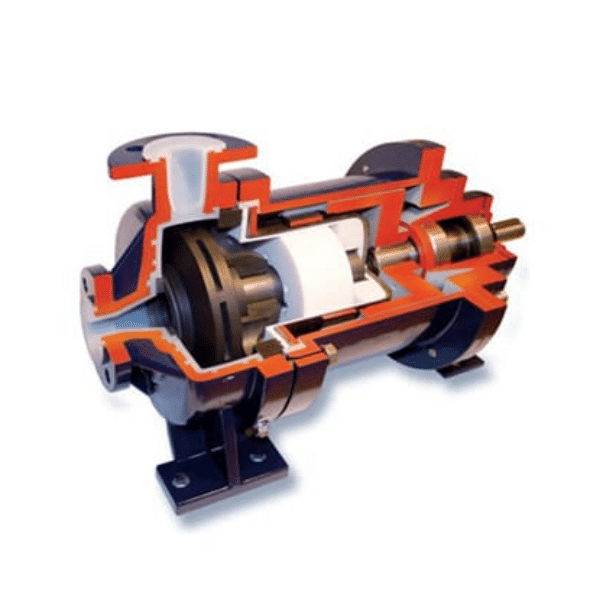

- Single Stage Horizontal Process Centrifugal Pump. To DIN EN ISO 22858 Standard

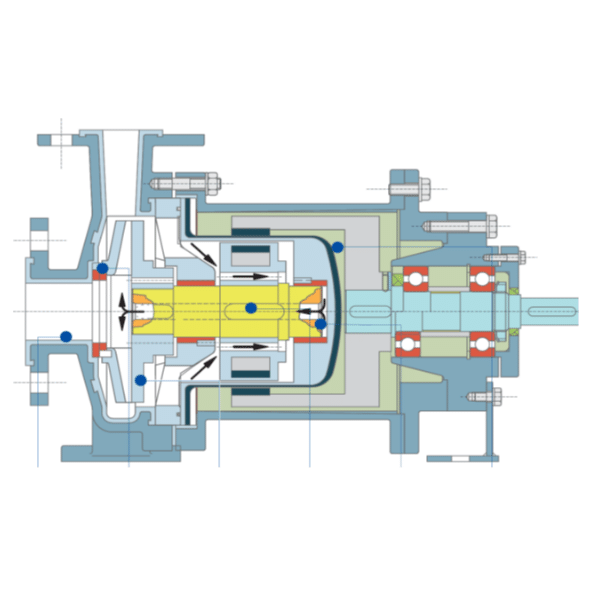

- Pump Casing Designed to OH 1 arrangement with side inlet and top outlet connection
- Pump construction, performance and hydraulic built accordance to DIN EN ISO 2858
- Permanent maintenance free magnet drive
- Pump casing of GGG40.3 lined WTH 4mm Thick PFA
- Closed coupled design with flange mounted electric motor is available too
- The isolation is made of carbon fibre composite and lined with PTFE
- Zirconium non metallic isolation shell is also available as option
- Internal silicon bearing slide bearing design are product lubricated
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Absolute aggressive liquids
- Dangerous liquids
Details
| Flow Rate | Up to max. 180m³/h. |
|---|---|
| Delivery Head | Up to max. 85m L.C. |
| Temperature Range | -30°C to +170°C |
| Pressure Rating | max. PN 16 |
