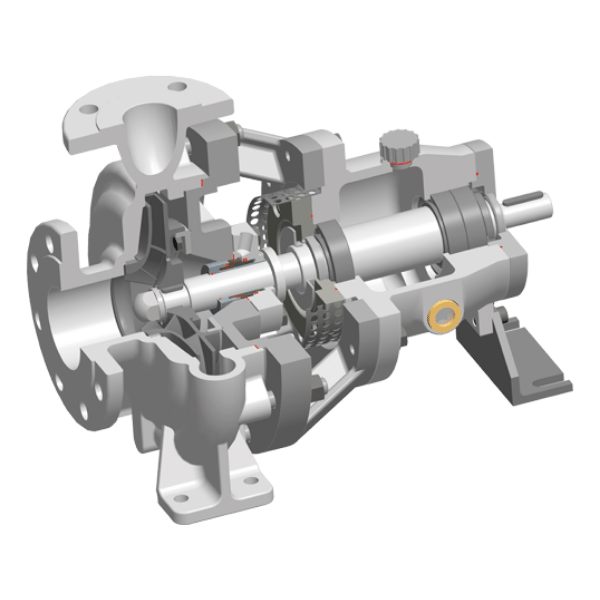

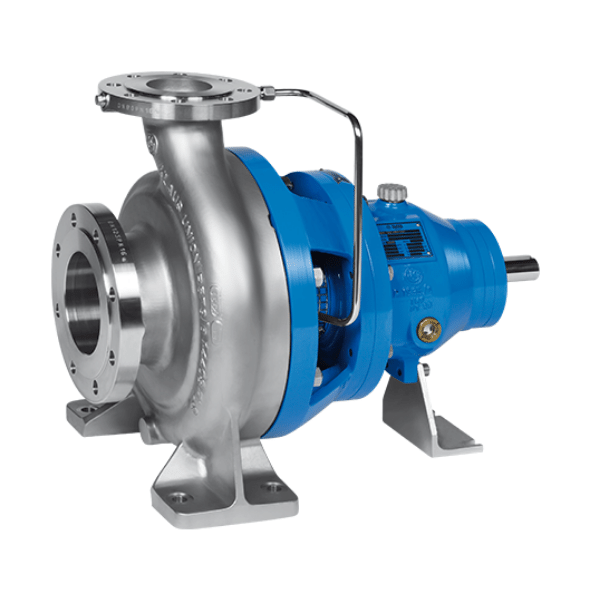

Overview Design
- Single stage horizontal process centrifugal pump to EN ISO 2858
- Pump Casing Designed to OH1 – Foot Mounted (with optional to OH2 – Centerline Mounted)
- Pump construction, performance and hydraulic built accordance to EN ISO 2858
- Shaft sealing: for single or double mechanical seal with flushing plan
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium – special material is also available upon request
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design. For other bearing design, please consult us
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Hear transfer liquid
- Coolants
- Liquid gases
- Sewag
- Coloring matters
- Salt solutions
- pulp
Details
| Flow Rate | Up to max. 3500m³/h. |
|---|---|
| Delivery Head | Up to max. 220m L.C. |
| Temperature Range | -120°C to +450°C |
| Pressure Rating | max. PN 100 |
