Overview Design

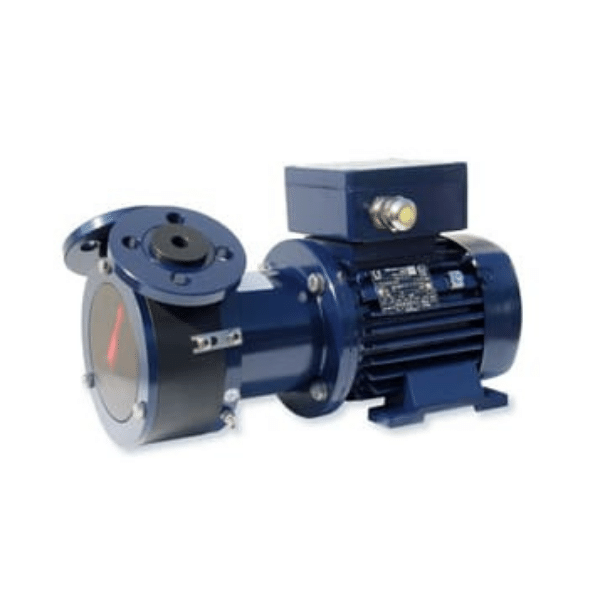

- Peripheral or side channel pump with PTFE/PFA Lining in closed coupled design
- Pump Casing designed to OH 1 arrangement with top inlet and top outlet connection
- This pump is best suited for pumping liquids with low boiling temperature as they are completely not sensitive to cavitation with flow up to 30% gas volume fraction
- Pump casing of GGG40.3 lined WTH 4mm thick PFA
- Closed coupled design with flange mounted electric motor is available too
- The isolation is made of carbon fibre composite and lined with PTFE
- Zirconium non metallic isolation shell is also available as option
- The magnetic coupling consist of a PTFE coated inner magnet and a flywheel mass with outer magnets
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Absolute aggressive liquids
- Dangerous liquids
Details
| Flow Rate | Up to max. 10m³/h. |
|---|---|
| Delivery Head | Up to max. 80m L.C. |
| Temperature Range | -30°C to +170°C |
| Pressure Rating | max. PN 16 |
