Overview Design

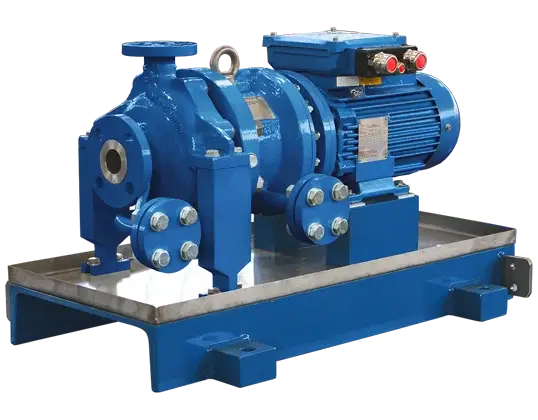

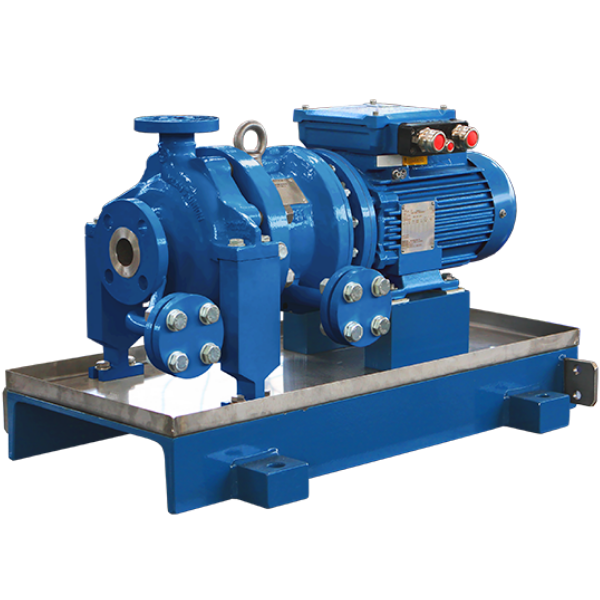

- Single Stage Horizontal Process Centrifugal Pump. To API 685 2nd edition standard

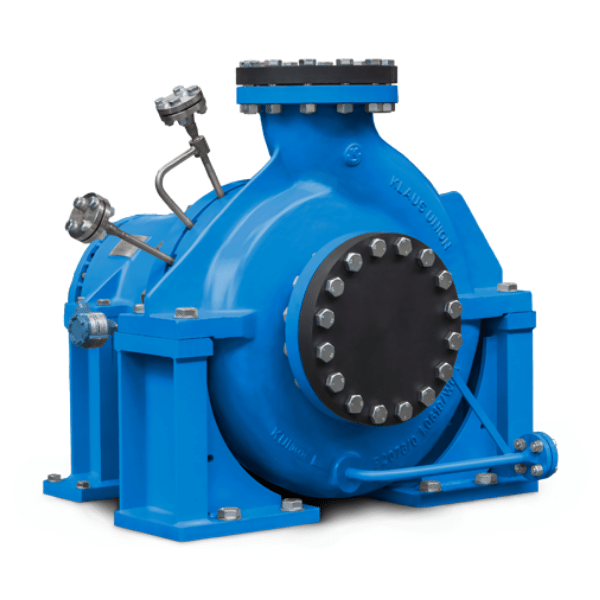

- Pump casing designed to OH 1 construction (With optional to OH2 construction)
- Pump construction, performance and hydraulic built accordance to ASME B73.3M
- Permanent maintenance free magnet drive
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium – special material is also available upon request.
- Closed coupled design is available too.
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design.
- Product Lubricated Internal Slide Bearing, Silicone Carbide (SiC) for improved pump bearing lifespan
- Standard metallic isolation shell (option non metallic design is available)
Typical Applications
- Hydrocarbons
- Liquid gases
- Aggressive, explosive and toxic liquids
- Hear transfer liquid
- Coolants
- Acids
- Lyes
Details
| Flow Rate | Up to max. 3.500m³/h. |
|---|---|
| Delivery Head | Up to max. 220m L.C. |
| Temperature Range | -120°C to +450°C |
| Pressure Rating | Class 150#, Class 300#, max. PN 400 |
