Overview Design

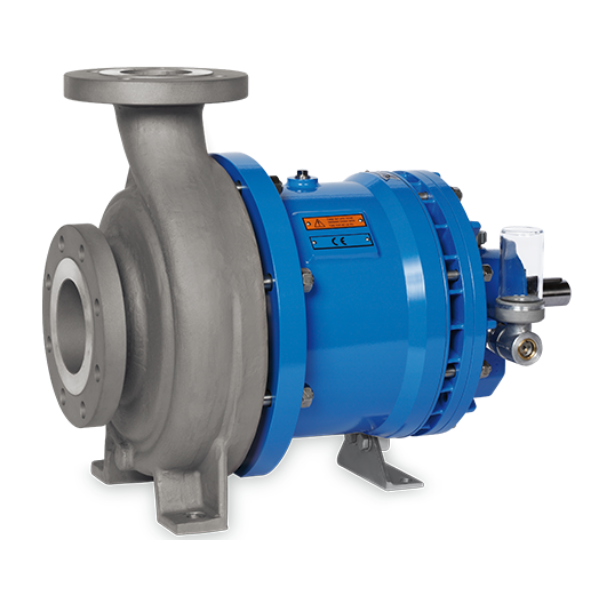

- Single Stage Horizontal Process Centrifugal Pump. To ANSI / ASME Standard
- Pump casing designed to OH 1 – Foot Mounted (With optional to OH 2 – Centerline Mounted)
- Pump construction, performance and hydraulic built accordance to ASME B73.3 M
- Permanent maintenance free magnet drive
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium – special material is also available upon request.
- Closed coupled design is available too.
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design.
- Product Lubricated Internal Slide Bearing, Silicone Carbide (SiC) for improved pump bearing lifespan
- Standard metallic isolation shell (option for non metallic shell is available)
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Hear transfer liquid
- Coolants
- Liquid gases
- Aggressive, explosive and toxic liquids
- Liquid containing solids
- High viscosity liquids
Details
| Flow Rate | Up to max. 150m³/h. |
|---|---|
| Delivery Head | Up to max. 100m L.C. |
| Temperature Range | -120°C to +450°C |
| Pressure Rating | max. PN 400 |
