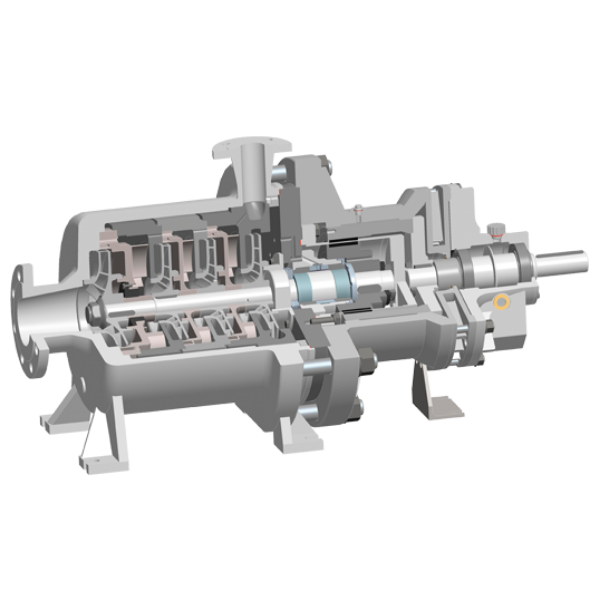

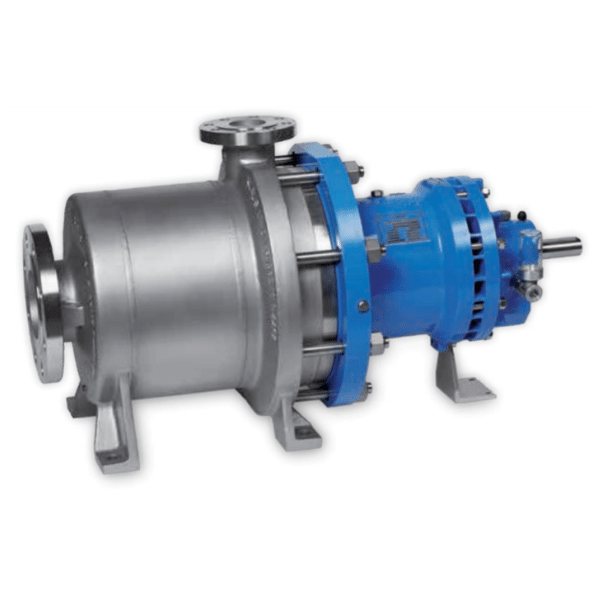

Overview Design
- Horizontal Multi Stage Centrifugal Horizontal Process Pump. To DIN EN ISO 15783 with optional features to API 685 2nd edition.
- Barrel design with series impeller arrangement up to 6 stages.
- First low NPSH first stage impeller for improved suction capabilities.
- Permanent maintenance free magnet drive
- Pump material available in steel, stainless steel and special material is also available upon request.
- Closed coupled design is available too.
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design.
- Product Lubricated Internal Slide Bearing, Silicone Carbide (SiC) for improved pump bearing lifespan
- Standard metallic isolation shell (option for non metallic shell is available)
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Hot water
- Liquid gases
- Aggressive, explosive and toxic liquids
- Heat transfer liquid
Details
| Flow Rate | Up to max 350m³/h. |
|---|---|
| Delivery Head | Up to max 700m L.C. |
| Temperature Range | -120°C to +350°C |
| Pressure Rating | Max. PN 200 |
