Overview Design

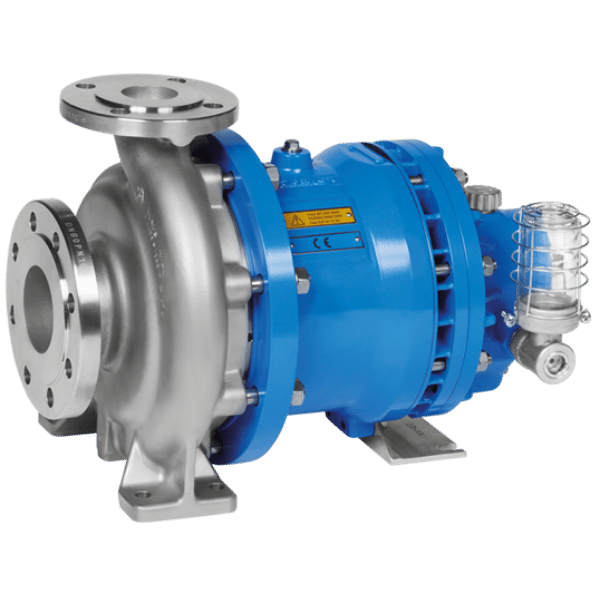

- Single Stage Horizontal Process Centrifugal Pump. To DIN EN ISO 15783 Standard
- Pump Casing Designed to OH 1 – Foot Mounted (With optional to OH2 – Centerline Mounted)
- Pump construction, performance and hydraulic built accordance to DIN EN ISO 2858
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium – special material is also available upon request.
- Closed coupled design is available too.
- Bearing bracket available in oil lubricated or greased for life antifriction bearing design.
- Product lubricated Internal Slide Bearing, Silicone Carbide (SiC) for improved pump bearing lifespan
- Standard metallic isolation shell (option for non metallic shell is available)
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Hear transfer liquid
- Coolants
- Liquid gases
- Aggressive, explosive and toxic liquids
- Liquids containing solids
- High-viscosity liquids
Details
| Flow Rate | Up to max. 3.500m³/h. |
|---|---|
| Delivery Head | Up to max. 220m L.C. |
| Temperature Range | -120°C to +450°C |
| Pressure Rating | max. PN 400 |
