Overview Design

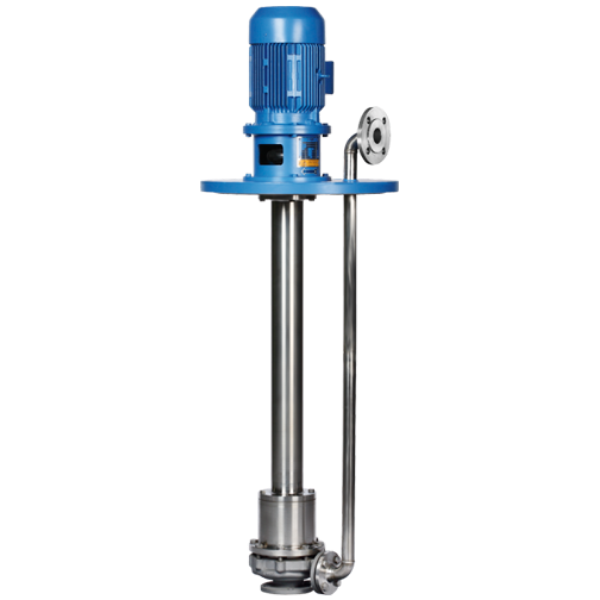

- Single Stage Submerged Centrifugal Pump. To DIN EN ISO 2858
- Pump construction, performance and hydraulic built accordance to DIN EN ISO 15783
- Multi stage design available: Optional upon request
- Permanent maintenance free magnet drive
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium
- Bearing bracket available in greased for life antifriction
- Product Lubricated Internal Slide Bearing, Silicone Carbide (SiC) for improved pump bearing lifespan
- Standard metallic isolation shell (option for non metallic shell is available)
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Heat transfer liquid
- Aggressive, explosive and toxic liquids
- Industrial effluent
Details
| Flow Rate | Up to max. 900m³/h. |
|---|---|
| Delivery Head | Up to max. 220m L.C. |
| Temperature Range | -50°C to +200°C |
| Pressure Rating | max. PN 40 |
| Submergence Length | Up to max. 10 meters |
