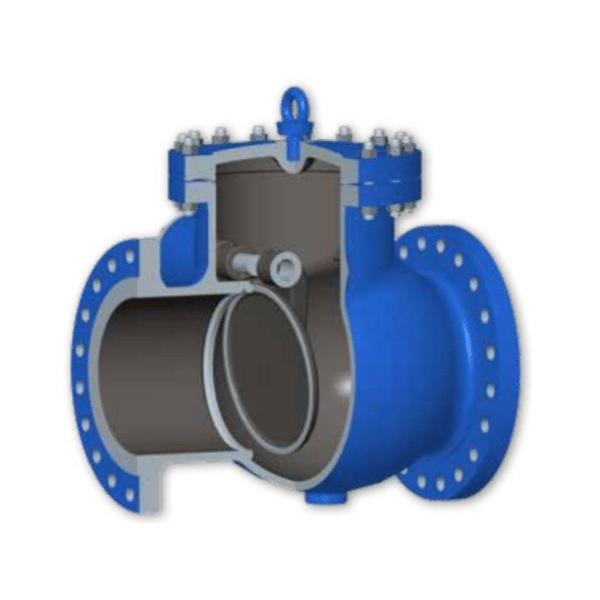

Valve Design
- Body of cast materials
- Bolted cover
- Inside shaft design
- Available in flanged or butt weld design
- Option:
- Outside shaft design with lever & counterweight
- Adjustable hydraulic damper
- Protection cage
Design Standards
- Test pressure: API 598
- Face to face: ASME B16.10
- Flange type: ASME B16.5
- Flange facing: Raised face (RF)
- Butt weld:
- ASME 16.25
- Other design available as option
- Face to face:
- ASME B16.10
- Extended face to face is available as option by using pup pieces
- Valve material: Please refer to list of standard material
Details
| Norminal Size Range | 2 inches to 24 inches |
|---|---|
| Norminal Pressure Range | class 150 to class 600 |
| Temperature Range | -200°C to +550°C |
