Overview Design

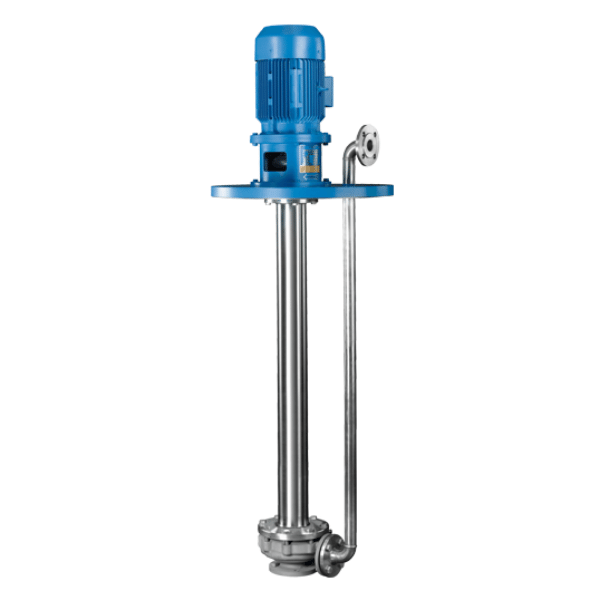

- Single stage submerged centrifugal pump to DIN EN ISO 2858
- Pump construction, performance and hydraulic built accordance to DIN EN ISO 15783
- Multi stage design available: optional upon request
- Shaft sealing chamber according to DIN EN 12756 for mechanical seal or gland packing installation
- Pump material available in steel, stainless steel, duplex, nickel based material and titanium
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Heat transfer liquid
- Liquid gases
Details
| Flow Rate | Up to max. 1600m³/h. |
|---|---|
| Delivery Head | Up to max. 200m L.C. |
| Temperature Range | -50°C to +250°C |
| Pressure Rating | max. PN 40 |
| Submerge Length | Up max 10 meters |
