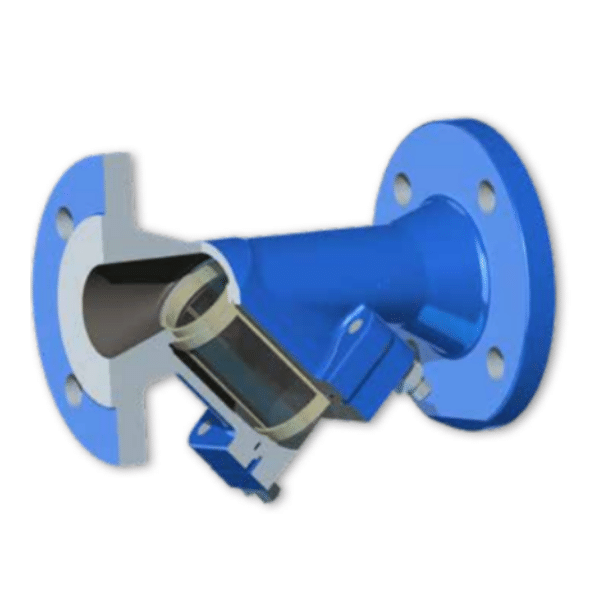

Y-Strainer Design

• Body of cast materials
• Bolted cover
• Stainless steel screen
• Flange or butt weld ends
• Standard mesh size
  DN 15 to DN 50 — 0.5mm
  DN 65 to DN 150 — 1.0mm
  DN 200 — 1.6mm

Design Standards

• Test pressure: EN 12266-1/2
• Face to face: PN 10-PN 40 EN 558-1/1
• Flange facing:
  • Form B1 (PN 10-PN 40)
  • Other flanges design available as option
• Valve material:
  • DIN 1.3308, DIN 1.4308 & DIN 1.0619
  • Other material available upon request
• Options:
  • Heating jacket
  • Drain screw
  • Other strainer mesh size
  • Different gasket material
